Acupuncture needle stimulator | 6 channel device | Needles and Electrodes
€89.00
Tax included
Real Time:
5
Visitor right now

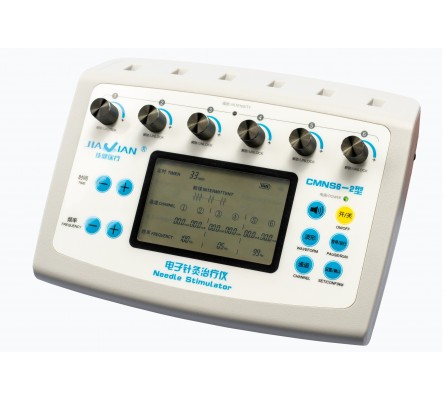

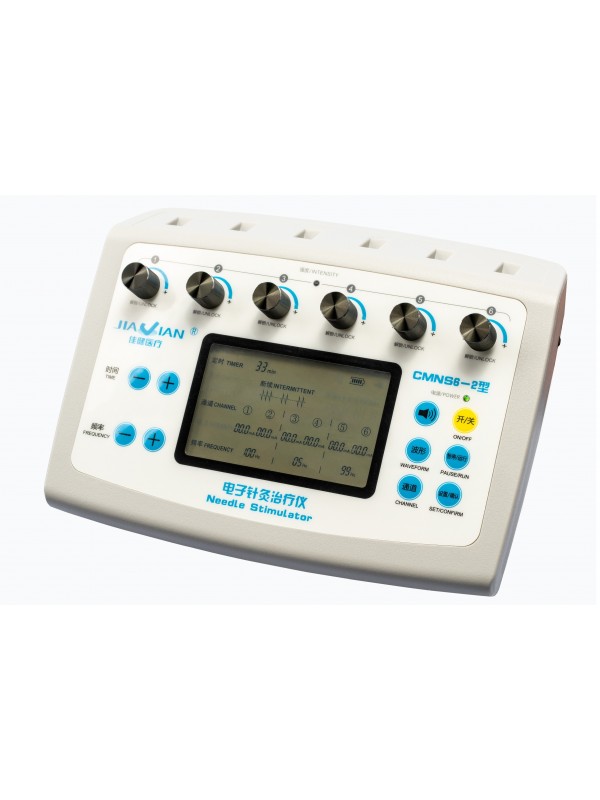

Acupuncture needle stimulator
for professional use !
- LCD display
- Frequency controlled by computer chip
- Intensity digitally adjustable
- Digital button; simple and convenient
- EU adapter
This Needle Stimulator (Model: CMNS6-2) combines modern technology with traditional acupuncture meridian theory, providing an easy-operated and portable device that can offer electrical acupuncture treatment.
Intended use: carry out electric pulse assisting therapy via electrodes and acupuncture needle. The product shall be used in hospital and clinics; not for home-use.
It has two working modes: high and low level.
High level is applicable when skin electrodes are used and its rated impedance is 500Ω; low level is applicable when acupuncture needle electrodes are used and its rated impedance is 250Ω.

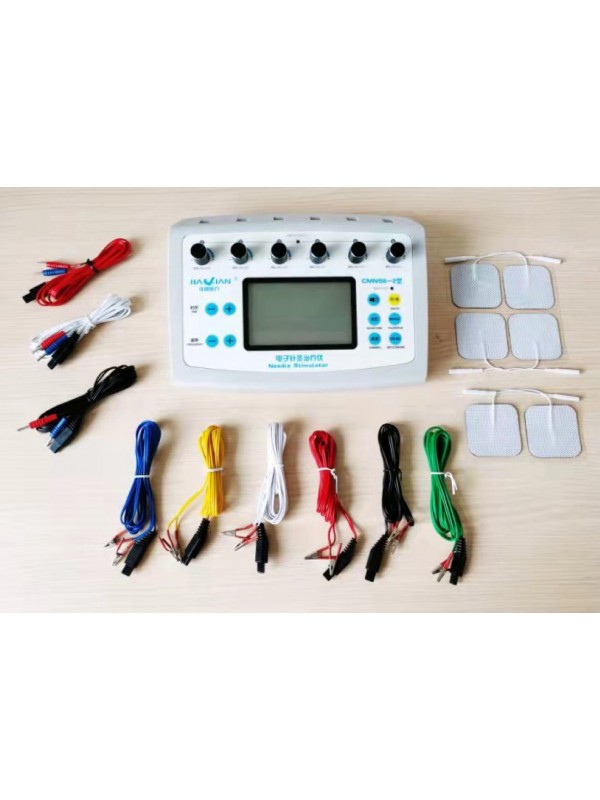

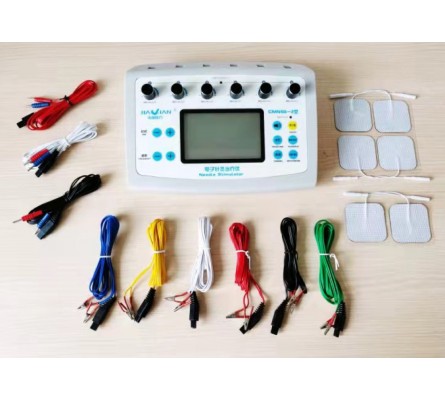

It consists of four parts: main device, skin electrodes, acupuncture needle electrode clips, output wires.
6972011718417
CMNS6-2
clear
Size Guide
You can customize it or disable in the backoffice: Modules / Module manager / Size Guide. Displaying is possible for all products or for selected products, for selected categories.
This is an approximate conversion table to help you find your size. If you have already purchased an item by our brand, we recommend you select the same size as indicated on its label.
Women's apparel sizing
| International | XS | S | M | L | XL | XXL | XXXL |
|---|---|---|---|---|---|---|---|
| Europe | 32 | 34 | 36 | 38 | 40 | 42 | 44 |
| US | 0 | 2 | 4 | 6 | 8 | 10 | 12 |
| Chest fit (inches) | 28" | 30" | 32" | 34" | 36" | 38" | 40" |
| Chest fit (cm) | 71 | 76 | 81 | 86 | 91.5 | 96.5 | 101.1 |
| Waist fir (inches) | 21" | 23" | 25" | 27" | 29" | 31" | 33" |
| Waist fir (cm) | 53.5 | 58.5 | 63.5 | 68.5 | 74 | 79 | 84 |
| Hips fir (inches) | 33" | 34" | 36" | 38" | 40" | 42" | 44" |
| Hips fir (cm) | 81.5 | 86.5 | 91.5 | 96.5 | 101 | 106.5 | 111.5 |
| Skort lengths (sm) | 36.5 | 38 | 39.5 | 41 | 42.5 | 44 | 45.5 |
Men's apparel sizing
| International | XS | S | M | L | XL | XXL | XXXL |
|---|---|---|---|---|---|---|---|
| Europe | 32 | 34 | 36 | 38 | 40 | 42 | 44 |
| US | 0 | 2 | 4 | 6 | 8 | 10 | 12 |
| Chest fit (inches) | 33-35" | 36-38" | 39-41" | 42-44" | 45-47" | 48-50" | 51-53" |
| Chest fit (cm) | 84-89 | 91-97 | 98-104 | 107-112 | 114-119 | 122-127 | 129-134 |
| Waist fir (inches) | 28" | 30" | 32" | 34" | 36" | 38" | 40" |
| Waist fir (cm) | 71 | 76 | 81 | 86 | 91.5 | 96.5 | 101.5 |
| Skort lengths (sm) | 76 | 77.5 | 79 | 81 | 82.5 | 84 | 85.5 |
Size Guide
Hurry up! Only
2
item(s) left in Stock!
Acupunture electronic needle stimulator - 6 channel device
PRODUCT TECHNICAL PARAMETERS
Output waveform is asymmetric double triangle tip wave and output base wave is rectangular wave.
Output frequency: 1 HZ -100HZ adjustable( deviation±15%)
Impulse width: 0.175ms(deviation±30%)
Output voltage peak value: high level, 50 V ( allowable deviation ±30% 500 Ω rated load), only for skin electrode low level, 20 V (allowable deviation ±30% 250 Ω rated load),only for filiform-needle electrode
Output impulse channel: 6 channels
The device should have no DC component output
Effective values of max output current at 1000Ωand 250Ω load is not more than 10mA(r.m.s)
Timing : 1-99min(deviation±10%)
Power source: Alkaline battery R14/UM2×6,DC9V
or specific power adapter: model ABT005090. Input:220V~,50Hz, output: DC9V
500mA (recommend to use adapter complying with GB 9706.1)
Output waveform
a) continuous wave: 1Hz~100Hz adjustable
b) intermittent wave: frequency 1 HZ -100HZ adjustable. Interrupted wave time 5s±2s, continuous wave time 15±3s.
c) dilatational wave: frequency 1Hz~20Hz adjustable; dense wave 5Hz~100Hz adjustable; disperse time 5s±2s; dense time 10s±3s.
Skin electrode: 50mm×50mm,deviation±10%; electrical impedance170Ω,deviation±10%
Volume: 238 mm×184mm×75mm
Weight: approx. 657g
Note: 1) Frequency, impulse width and intensity vary with different mode.
2) Different impedance ( for skin electrode 500Ω,for Filiform-needle electrode
250Ω)has impact
CMNS6-2
